Coke Beer Bottle Crate Mold Material : HDPE Mold Cavity：1 Mold Core Steel：BeCu Mold Cavity Steel: H13+Becu Mold Injection System：6 tips HR Mold Size：810 X 940 X 840 mm Mold weight: 5116 kgs

For example, this flower transport crate.  This design is really complicated; it has not only sliders in the 4 sides like normal crates, but also many lifters to form the bottom design.   We used hundreds of pins to form the needle shapes.

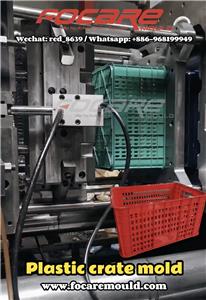

Plastic crate injection mold Mold cavity：1 Mold main material：P20H / 28-30HRC Runner: 4tips HR / 6tips HR

This foldable banana crate is so useful that we have already made 2 sets injection molds for our customer, and now we are making the third sets. Our customer is the biggest banana supplier in Mexico, and they would like to transport bananas from Mexico to USA. In the beginning, they asked us to design one crate which can be stacked up for 8 crates in each row without any deformation of crate. It means the crate should be strong enough as each crate has more than 15 kilos of banana inside, and the bottom crate must bear at least 105 kilos. Besides, when the crates are sent to the ripening room by forklift, they cannot be shaken or fallen, although they are stacked eight stories high. It means our design should be very precise to avoid any shaking or falling between the crate and the crate during handling.

-Two color stackable crate mold with rotary platen design -1+1cavity two color mold -4-tips point hot runner gate -718H steel used for mold core and cavity -Mold size about 850 X 710 X 659mm

In the production of this kind of beer bottle crate plastic injection molds, there are generally four side sliders, four lifters in the core part, one slider connecting rod in each corner of the cavity, and four side walls of the box with the handle of collision.    For this kind of beer bottle crate or coke bottle crate, we can make one or two cavities, the molding cycle time can reach 35 seconds, and the product can be fully automatic demoulding.

The advantages of two-color stackable crate are: 1. This two-color stackable crate is made of new composite plastics which has a long service life and good economic benefits. 2. This two-color stackable crate meets the requirements of environmental protection regulations. The plastic material can be recycled and reused 100%, saving handling costs. 3. There is no spikes in this two-color stackable crate. There is no risk of stabbing the package or causing personal injury. 4. This two-color stackable crate is fumigation-free and insect-free, complying with the requirements of packaging and environmental regulations in various countries for export. 5. This two-color stackable crate is easy to clean without breeding bacteria. It can prevent termites and has keep clean. 6. This two-color stackable crate has anti-slip design. The crates can be stacked on each other and save space and transportation costs.

Laundry Basket Size: 489.2 X 622.7 X 233.9mm Basket Weight: 0.59 kgs Gate system: 5 tips Hot Runner Not all molding applications are suitable for runner-less molding. Some materials are heat sensitive and the time to temperature relationship - especially when the shot size is very small - can be a problem. Some families of parts, for handling and orientation purposes, may be best kept attached to the runner until they reach another downstream operation. In other instances, the required volume of parts may be so small that the added cost of the hot runner system to the mold price cannot be justified.

Product Dimension: 600 x 400 x 144 mm Advantages: 1: could be assembled to be 1/2 pallet with dimension 800 x 600 x 144 mm (31' x 24 ' x 5.7') 2. Could be assembled to be 1 big complete pallet with dimensions 1,200 × 800 × 144 mm (47.2' × 31.5' × 5.7') 3. Mold design with 4 tips hot runner with big runner gate for easier material flow
