Two- color airtight food container plastic injection mold

Focare Mould, we have made sets of two-color airtight food containers. Due to the characteristic of light weight, high durability, good features, they are so prevalent on markets. Producing airtight food container by two-color injection way benefits both manufacturers and customers.

For this type of airtight food container, there are buckles on the side to ensure the tightness and prevent the leakage. Some buckles are made separately, however we made the two-color lid and buckles as one-piece. Therefore, a two-color lid and a body are one complete set, which makes product be lighter and simple. The weight of lid is 33g (25.5g for PP, 7.5g for TPE), and the body is 34g (33.3g for PP, 0.7g for TPE). On the other hand, producers can avoid on purchasing mould for buckles, which can save time and cost.

The containers are stackable for space saving, based on different requirements, the volume is adjustable. For example: 0.25L, 0.4L, 0.55L, and their weight will be 25.5g, 30g, 34g (0.7g for TPE). They share the same two-color lid; therefore, the customers can match them freely. The material of two-color airtight food container is PP+TPE. Manufacturing with food-grade materials, customers can use them with safety and confidence.

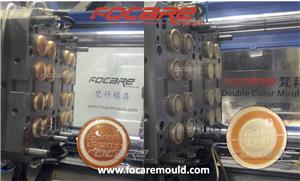

For the two-color airtight food container plastic injection mould, the mould cavity is (1+1-Lid)+(1+1-Body). Therefore, one mould and one machine are sufficient to make a complete two-color airtight food container. The mould has 6 points valve gate hot runner.  The material is 718H as mould steel. The mould size and weight is about 900x620x585mm and 1727kg, which means a 280T injection molding machine is sufficient.

The two-color airtight food container plastic injection mould is very complicated. To ensure the efficiency of cooling and stability of ejection, we design air and water channels run through cavity, core and inserts. Besides, adopting valve gates can guarantee the product appearance to look better. Except the ability of design, the processing capacity is also important.

You will need a professional and attentive team to help you expand your double-color injection business. Focare Mould, we are absolute your best choice. We are experienced, professional, and responsible. Just contact us and create a win-win business.
